PCM 4S 12A
0689594115828
PCM 4S para Baterías de Litio
XR3636 16.8v. 12A
1 a 2 días
¡Últimas Unidades en stock!
Disponible el:

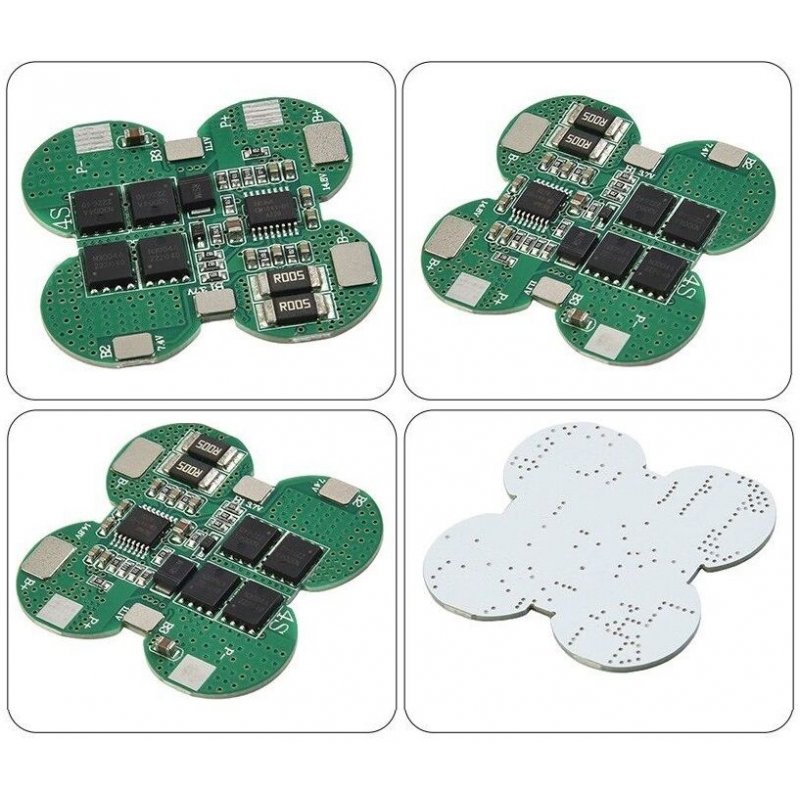

PCM 4S para Baterías de Litio
XR3636
16.8v. 12A
PCM (Protection Circuit Module)
Que es PCM para Baterías de Litio-Li-Po
Datos técnicos generales
14.8v. (4x3.6v) 12-18A
Protección 25A.
Carga a 16.8v
Specification
Discharge current: 12A/18A
Protection: 40A
Charging current (same port): ≤10A
Main circuit conduction internal resistance: ≤30mΩ
Charging voltage: 16.8V
Overcharge protection
Detection voltage: 4.25±0.025V
Detection delay: 100±50MS
Release voltage: 4.15±0.05V
Over discharge protection
Detection voltage: 2.7±0.1V
Detection delay: 100±50MS
Release voltage: 3.0±0.1V
Overcurrent protection
Detection voltage: 100MV
Detection delay: 1000Ms±500Ms

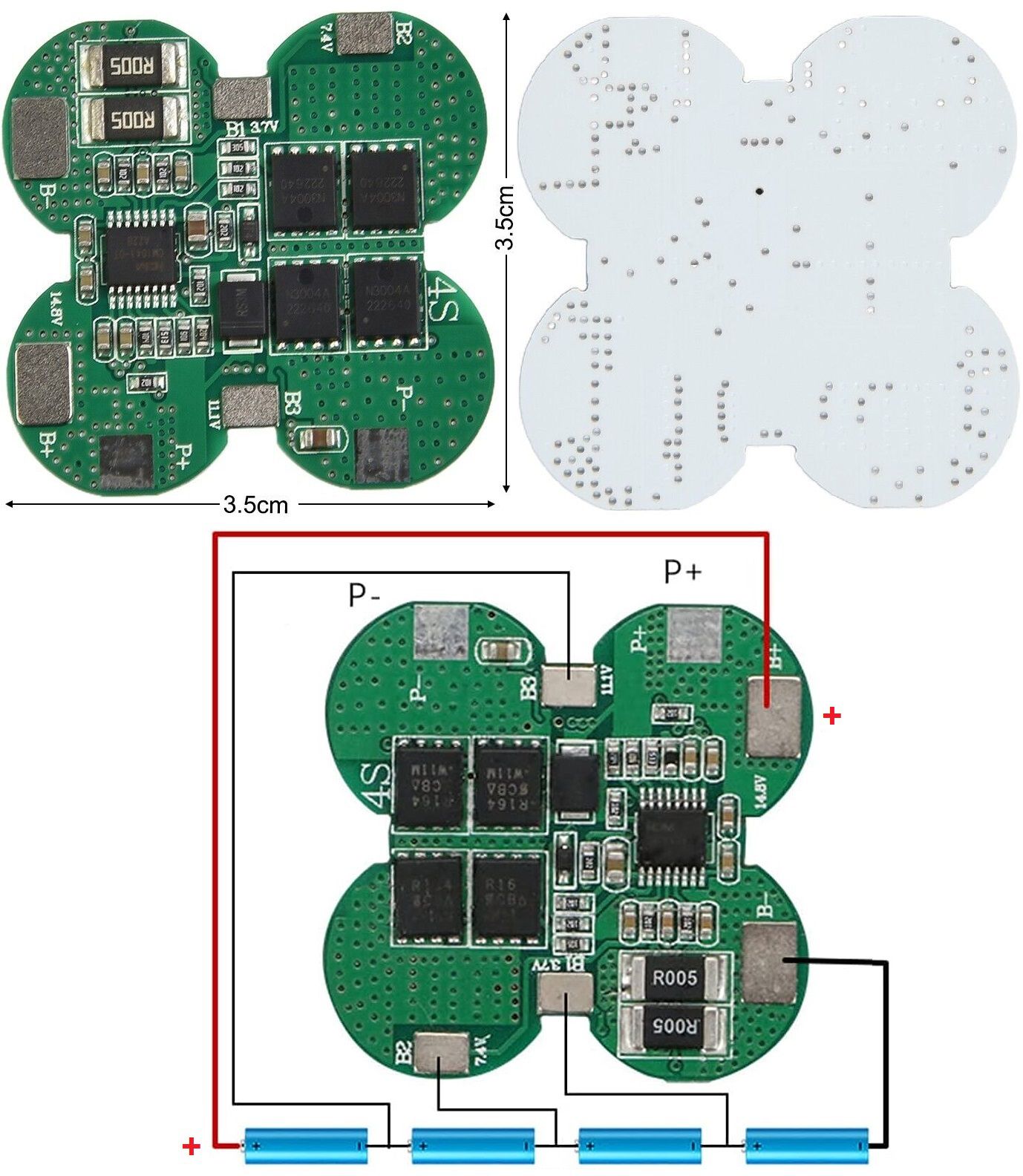

Ejemplos de aplicación
Accesorios de montaje para Pack?
Cintas de Cobre | Termoretráctiles | ||
Contactos de Niquel pack |
