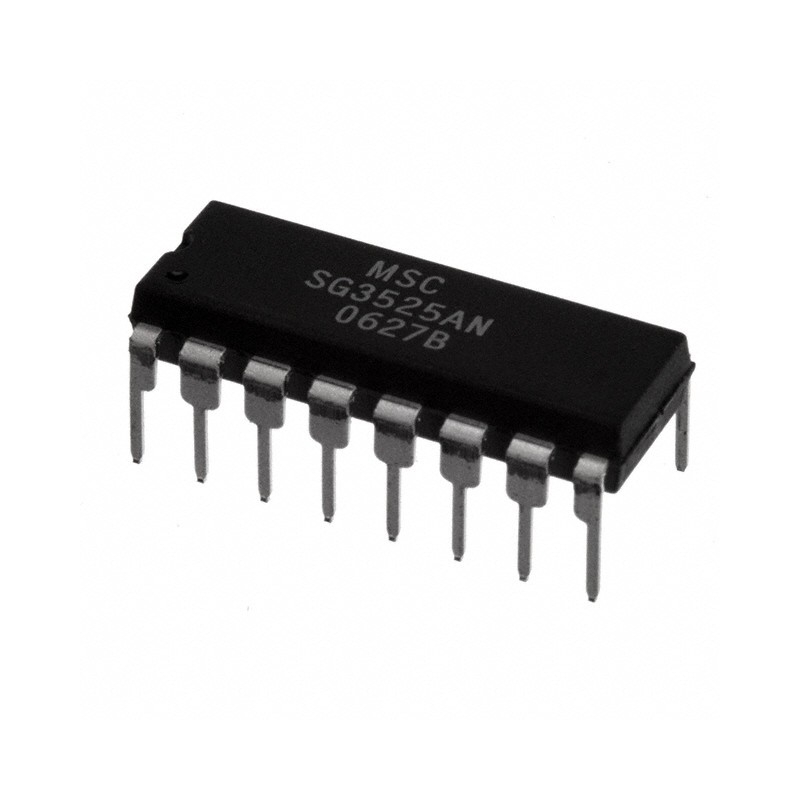

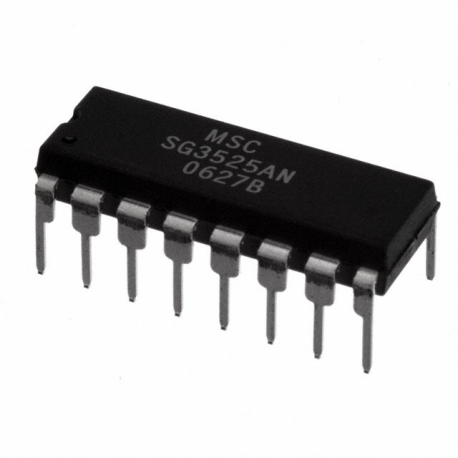

SG2525
Controlador PWM
1 a 2 días
¡Últimas Unidades en stock!
Disponible el:
Unidades, Metros, Kg | Precio/unidad | Ahorro total |
---|---|---|
3 | 0,7316 € | Hasta 0,0679 € |
5 | 0,7165 € | Hasta 0,1886 € |

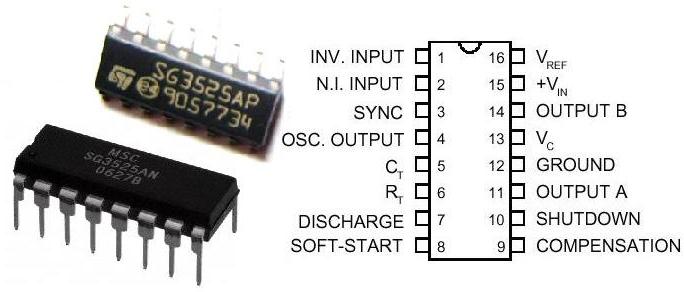

SG2525
Controlador PWM
PWM para Fuentes conmutadas, control de motores
Encapsulado Smd SO16 y Dip16
SG2525 DC/DC Converter 12V to +35V,-35V Switch mode Power Supply For Car Audio The selected switching topology is called a “push-pull” converter, because the transformer has a double primary (or a “centre-tapped” one, if your prefer).
This control circuit is ideal for the accurate control of DC motors as well as other applications like lighting levels and small heaters etc. The circuit converts a DC voltage into series of pulses, such that the pulse duration is directly proportion to the value of the DC voltage.
No hay comentarios en este momento.
