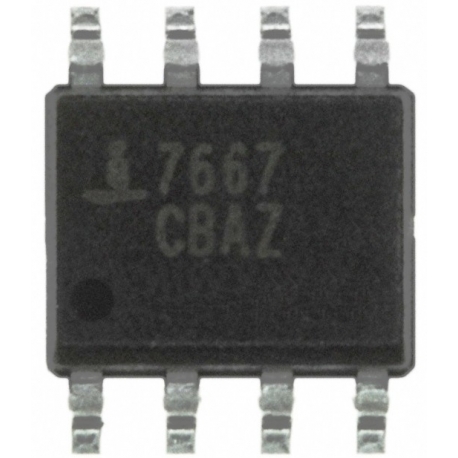

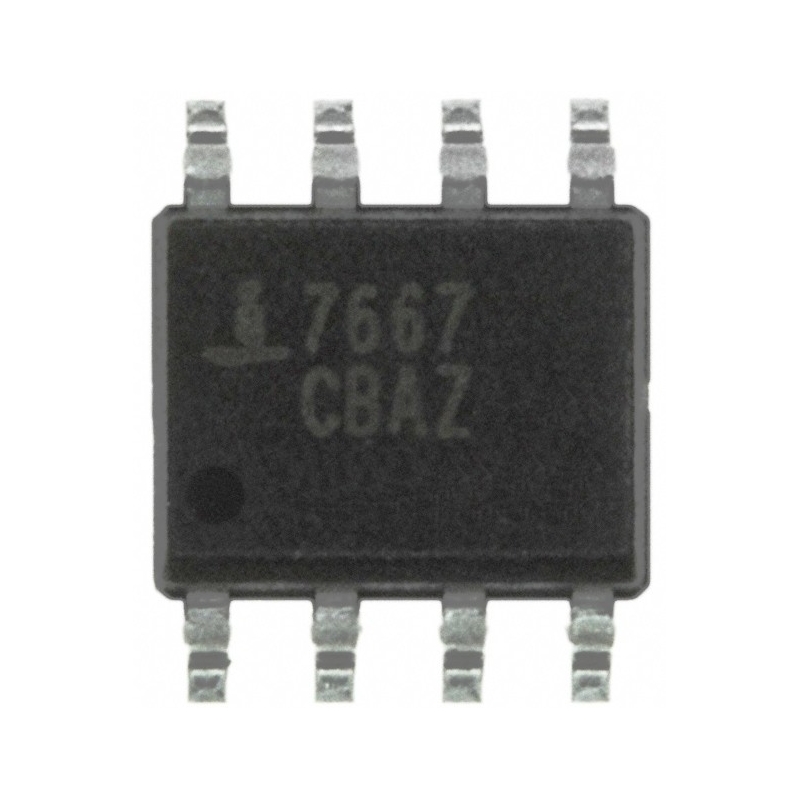

Integrados ICL 7667 Smd y Dip

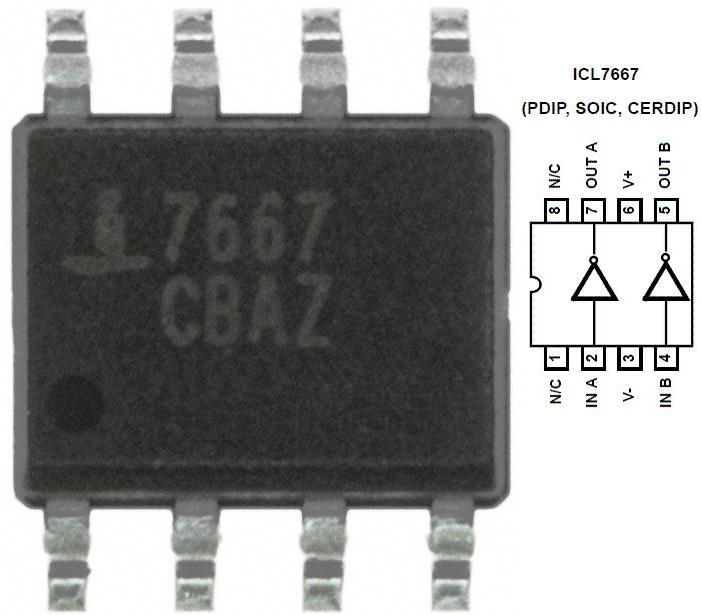

ICL 7667

I.C. Dual Power MOSFET Driver

2 x MOSFET 15V 1,5A

Encapsulado Smd SO8

Voltaje: 15v

Corriente: 1.500mA

Descargar PDF

The ICL7667 is a dual monolithic high-speed driver designed
to convert TTL level signals into high current outputs at
voltages up to 15V. Its high speed and current output enable
it to drive large capacitive loads with high slew rates and low
propagation delays. With an output voltage swing only
millivolts less than the supply voltage and a maximum supply
voltage of 15V, the ICL7667 is well suited for driving power
MOSFETs in high frequency switched-mode power
converters. The ICL7667’s high current outputs minimize
power losses in the power MOSFETs by rapidly charging
and discharging the gate capacitance. The ICL7667’s inputs
are TTL compatible and can be directly driven by common
pulse-width modulation control ICs.

Aplicación conversor de señales PWM de 5v a 10v
