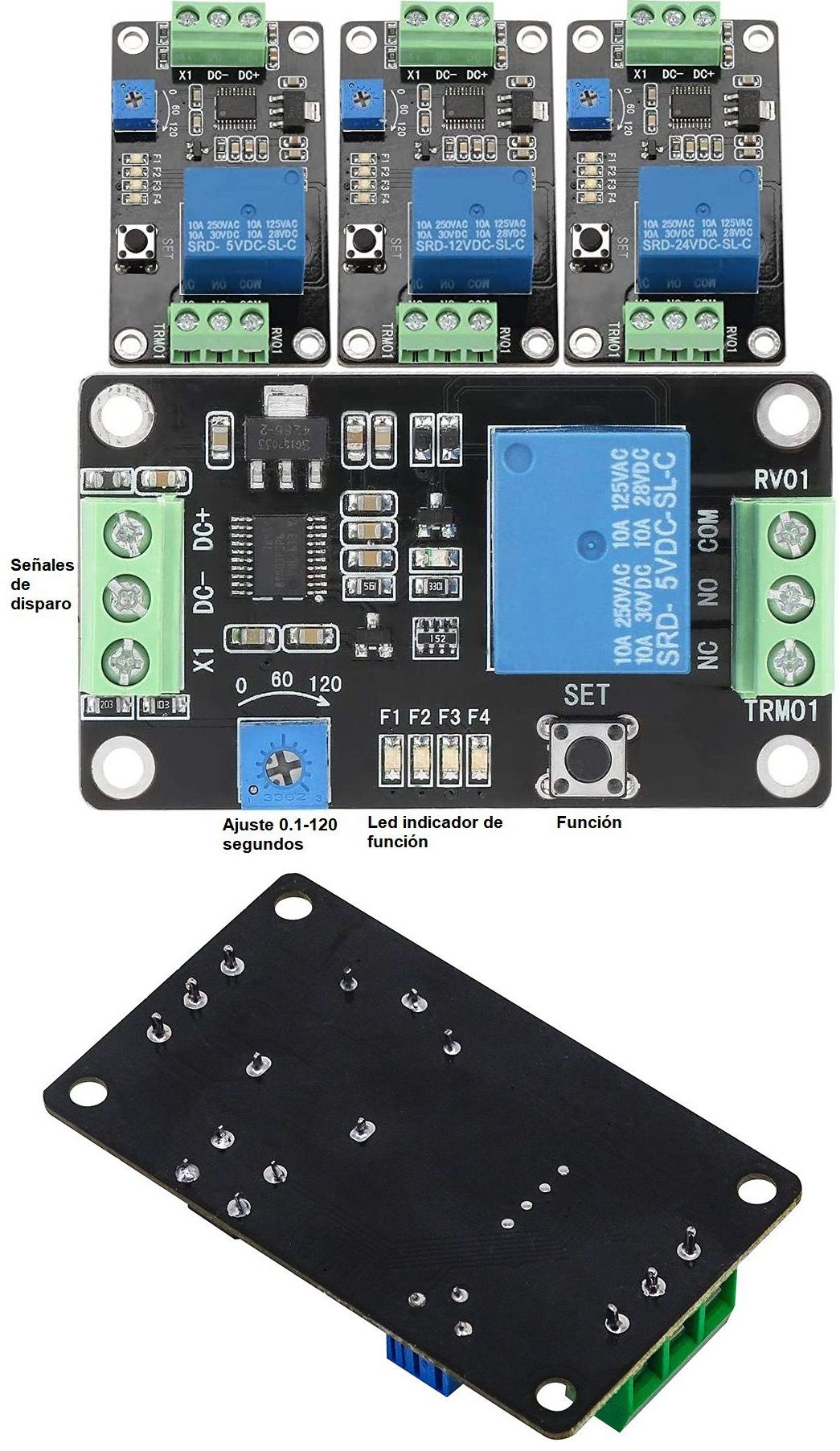

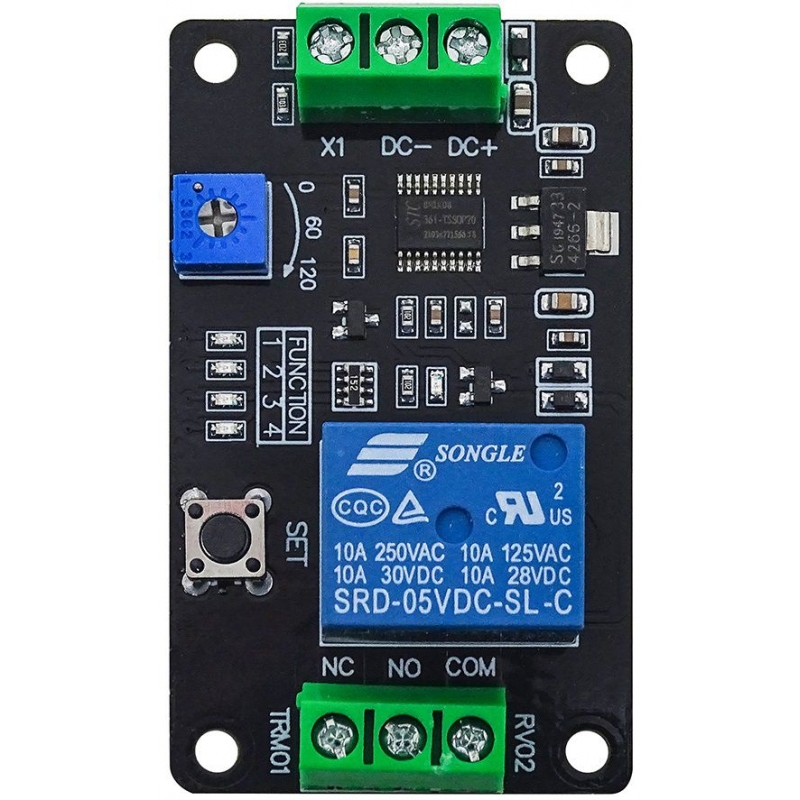

Temporizador de Relé 0.1-120 segundos, 5, 12, 24v

Temporizador de Relé 0-120 segundos

Es un temporizador de apagado/encendido con Relé

Voltaje a elegir: 5v, 12v, 24v

Relé: Común, NC, NA

Carga: 10 amperios

Module function:

The user can select one of the following four functions by pressing the button. The delay time can be selected by adjusting the potentiometer. The delay time T1 can be adjusted between 0.1 second and 120 seconds.

Function F1: Power-on delay pull-in: After the delay of T1 from the start of power-on, the relay pulls in and sends a high-level pulse signal to the X1 interface at any time. This function resets and restarts.

Function F2: The power-on delay is disconnected: the relay is when the power is turned on. After the T1 time is , the relay is disconnected, and a high-level pulse signal is given to the X1 interface at any time. This function is reset and restarts.

Function F3: Self-locking relay mode: a high-level pulse signal is sent to the relay X1 interface, the relay is , and a high-level pulse signal relay is turned off.

Function F4: Level trigger mode: When the power is turned on, the relay is disconnected, and a high level signal is sent to the X1 interface. The relay immediately picks up. After the X1 port signal disappears, the relay still pulls in. When the pull-in time T1 arrives, the relay turns off.

Medidas: 30x35x20m
