Fte Dc-Dc.1.25-37v LM2596 USB
0689593953186
Fuente Dc-Dc.1.25-37v 2A LM2596 con Dígitos Led 24x15mm
1.25-37v ajustable 2A con display 3 Led
1 a 2 días
¡Últimas Unidades en stock!
Disponible el:
Unidades, Metros, Kg | Precio/unidad | Ahorro total |
---|---|---|
4 | 3,6661 € | Hasta 0,7718 € |
8 | 3,4731 € | Hasta 3,0872 € |

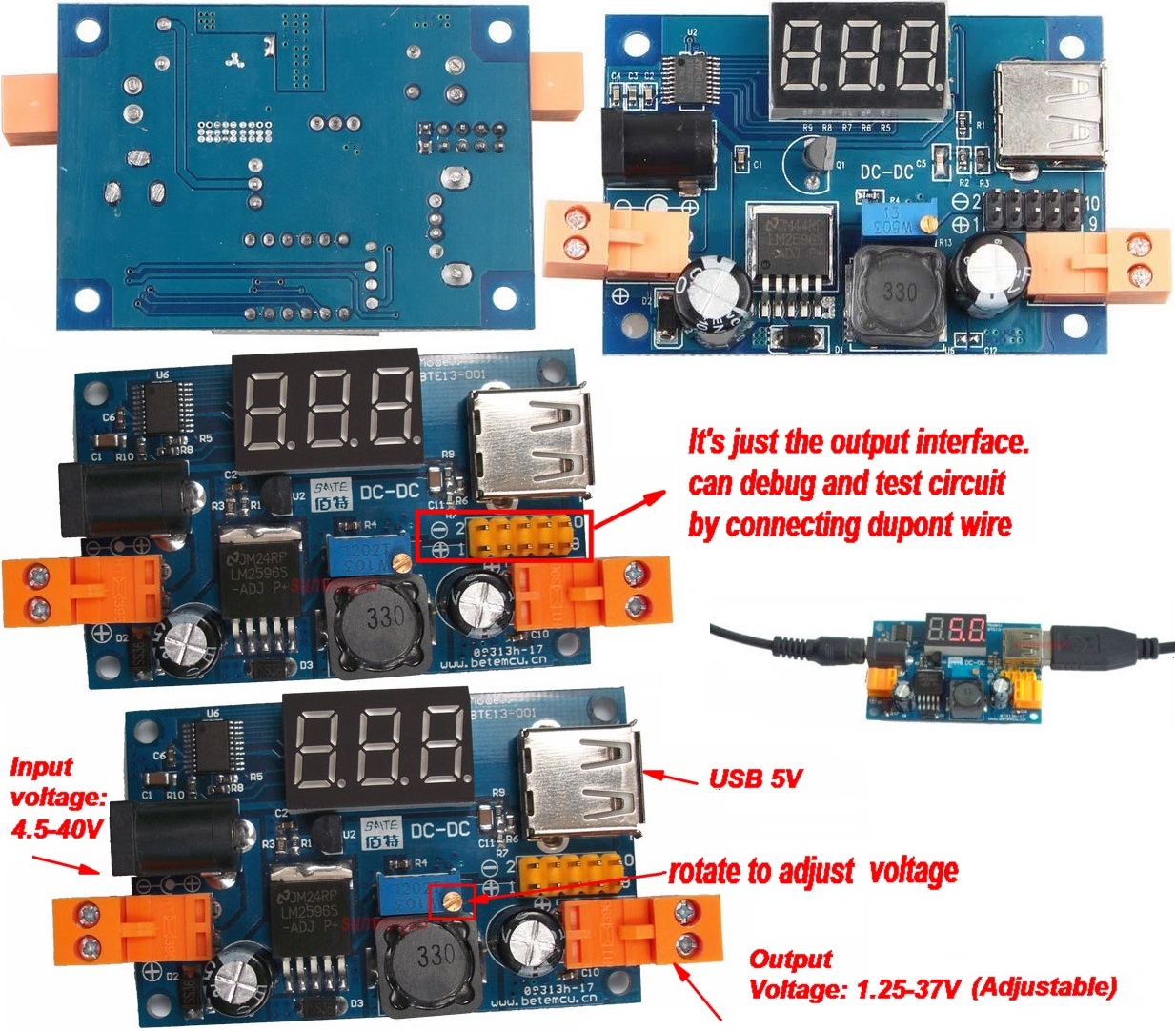

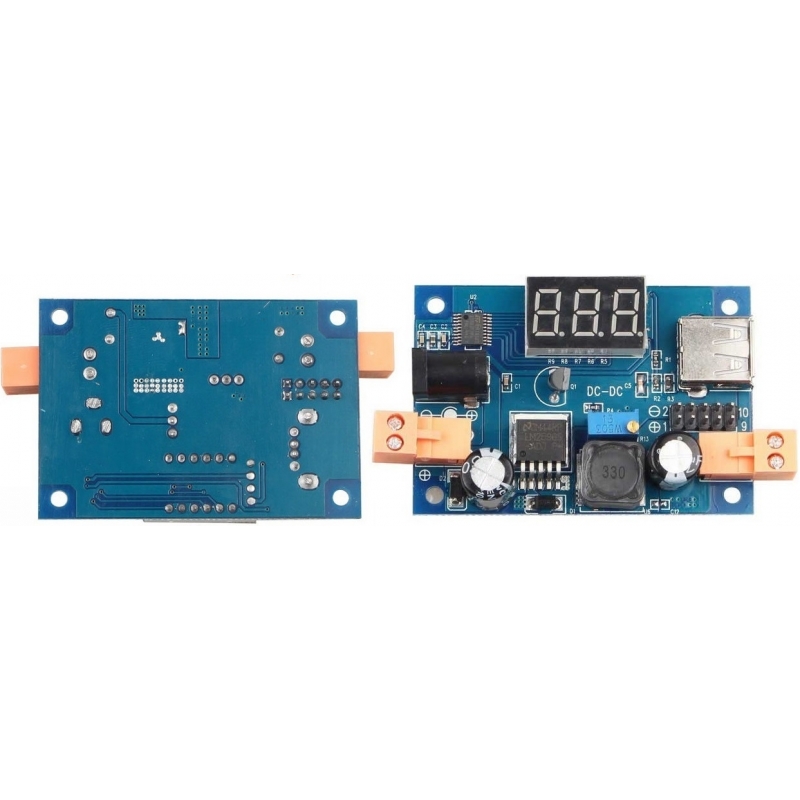

Fuente Dc-Dc.1.25-37v 2A LM2596
con Dígitos Led y USB
Non-isolated step-down module (buck)
CC-CV 1.25-37v ajustable 2A con Voltímetro Led
Display de 23x14mm
Wide Input voltage: 4.5-40V.
Output Voltage: 1.25-37V (Adjustable).
USB Output
Output current: rated current 2A, 3A MAX ( Heat-sink Needed).
If you need its output power greater than 2A/10W, please add with heat-sink.
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency).
Switching Frequency: 150KHz.
Rectifier: Non-Synchronous Rectification.
Module Properties: Non-isolated step-down module (buck).
Short circuit protection: current limiting, since the recovery.
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less).
Full load temperature rise: 40.
Load regulation: ± 0.5%
Voltage regulation: ± 2.5%
Dynamic response speed: 5% 200uS.
