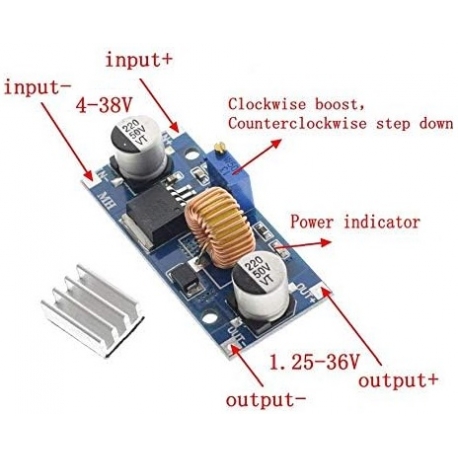

Fuente Dc-Dc XL4015 4-38V a 1.25-36V 25w

Fuente Dc-Dc XL4015

Tipo Step Down Buck

4-38V to 1.25-36V 75w

Description:
This product is a 180 KHz fixed frequency PWM buck (step-down) DC/DC module, capable of driving a 5A load with high efficiency, low ripple and excellent line and load regulation.
Module highlights:5A  high power high efficiency and low ripple with power indicator !

Performance parameters:
1、Input voltage range：4～38VDC (Note:input voltage not exceeding 38V)
2、Output voltage range：1.25-36VDC adjustable
3、Output current: 0-5A
4、Output power: 75W
5、High efficiency up to 96%
6、Built in thermal shutdown function
7、Built in current limit function
8、Built in output short protection function
9、Input reverse polarity protection: None (if required, high current diode in series with the input).
10、L x W x H =5.4*2.3*1.5CM

Application:
The DC/DC buck module applications the input voltage is higher than the output voltage of the buck field, such as battery, power transformer, DIY adjustable regulated power supply, LCD Monitor and LCD TV, portable instrument power supply，telecom/networking equipment,24V vehicle notebook power supply,industrial equipment buck.12V buck to 3.3V, 12V buck to 5V,  24V buck to 5V,24V buck to 12V,  36V buck to 24V etc.
