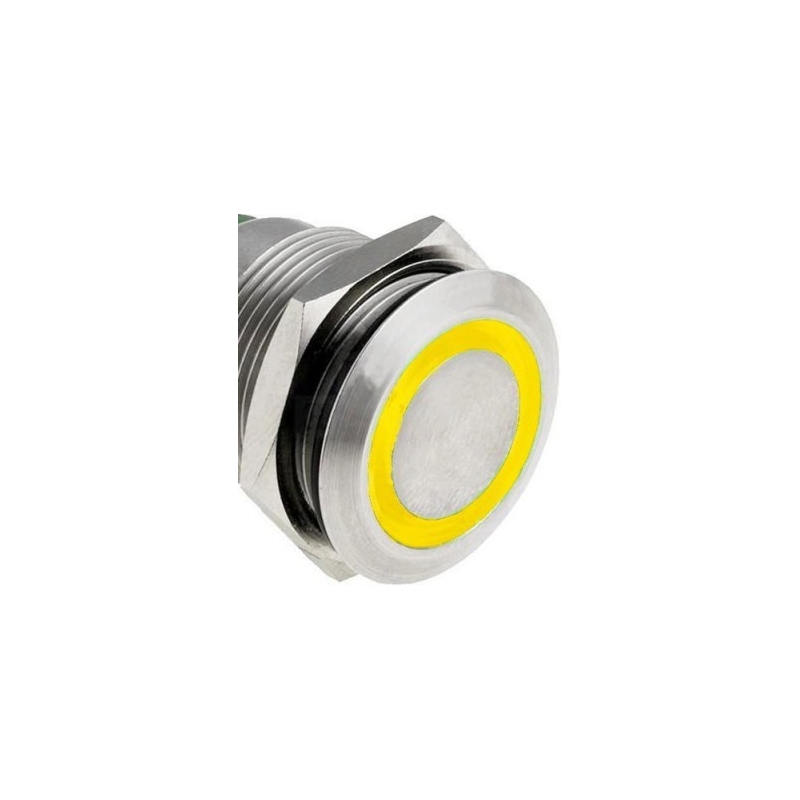

Pulsador Conmutado Anti Vándalo de Panel con Led Anillo 16mm

Pulsador conmutado de panel Antivándalos 16mm 1C

con Led Anillo

Versiones de color a elegir para la cesta

Son interruptores o conmutadores

Incorporan resistencia para 12v dc

Modo: Pulsador con enclavamiento

1 Circuito

Botón al raz

Corriente: 2A. (48vDC)

Medidas rosca: 16mm (M16)

SPECIFICATIONS:
1.Switch Rating: AC220V/0.5A, DC110V/0.1A.
2.Mechanical Life: 1000 cycles.
3.Electrical Life: 50000 cycles.
4.Contact Resistance: 50 mΩ
5.Insulation Resistance: 1,000 MΩ
6.Dielectric Strength: 1,500V, RMS 50Hz, 1min.
7.Operating Temperature: -25ºc +55ºc(No Freezing).
8.Operating Force: About 1.2~1.8N(1NO1NC), About 1.4~2N(2NO2NC).
9.Operating Travel: About 2.3mm.
10.Torque: About 0.6Nm max.applied to nut.
11.Protection degree: IP40/IP65/IP67;IK09.
12.Terminal Type: Pin Terminal(1.8 x 0.4mm), LED Pin(1.8 x 0.3mm).
