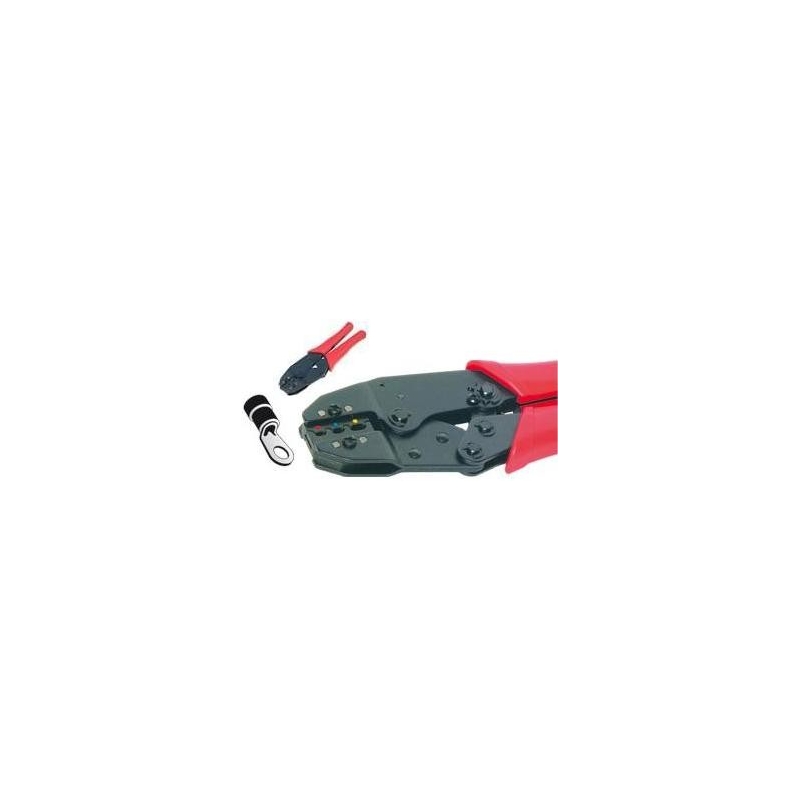

Alicates de Crimpado para Faston, Anillas, Pines

Alicates para Crimpar de Conectores y Terminales Faston, Pines, Anillas

Versiones:

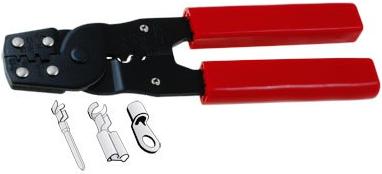

202B

Length: 185 mm
Application: insulated terminals; non-insulated terminals; terminals D-Sub connectors; wire cutting
Wire cross section:

0,08...0,14mm2 (terminals D-Sub connectors);
0,14...0,34mm2 (insulated terminals);
0,5...4mm2 (non-insulated terminals);
0,5...6mm2 (non-insulated terminals)
Wire size:   22...10AWG (non-insulated terminals);
22...12AWG (non-insulated terminals);
26...22AWG (insulated terminals);
28...26AWG (terminals D-Sub connectors)

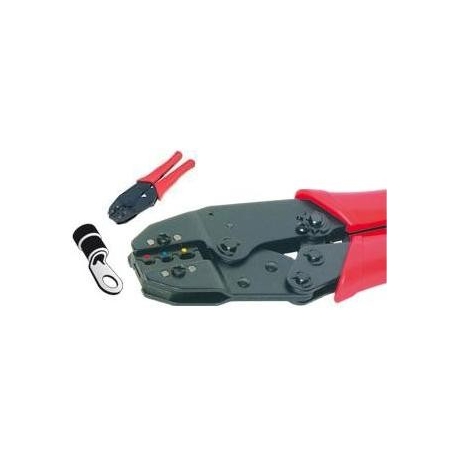

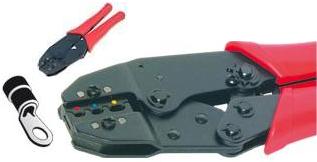

336

Length: 220 mm
Application: insulated connectors; insulated terminals
Wire cross-section: 0.5...6 mm2
Wire size: 20...10 AWG

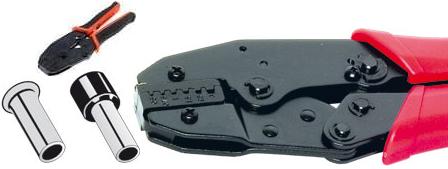

336E-301E

Length: 220 mm
Application: insulated solder sleeves; non-insulated solder sleeves
Wire cross section: 0,5mm2; 0,75mm2; 1,0mm2; 1,5mm2; 2,5mm2; 4mm2

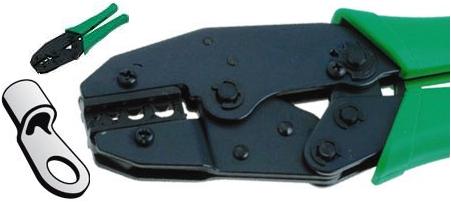

336N-236N

Length: 220 mm
Application: non-insulated terminals
Wire cross section: 1,5mm2; 10mm2; 2,5mm2; 6mm2

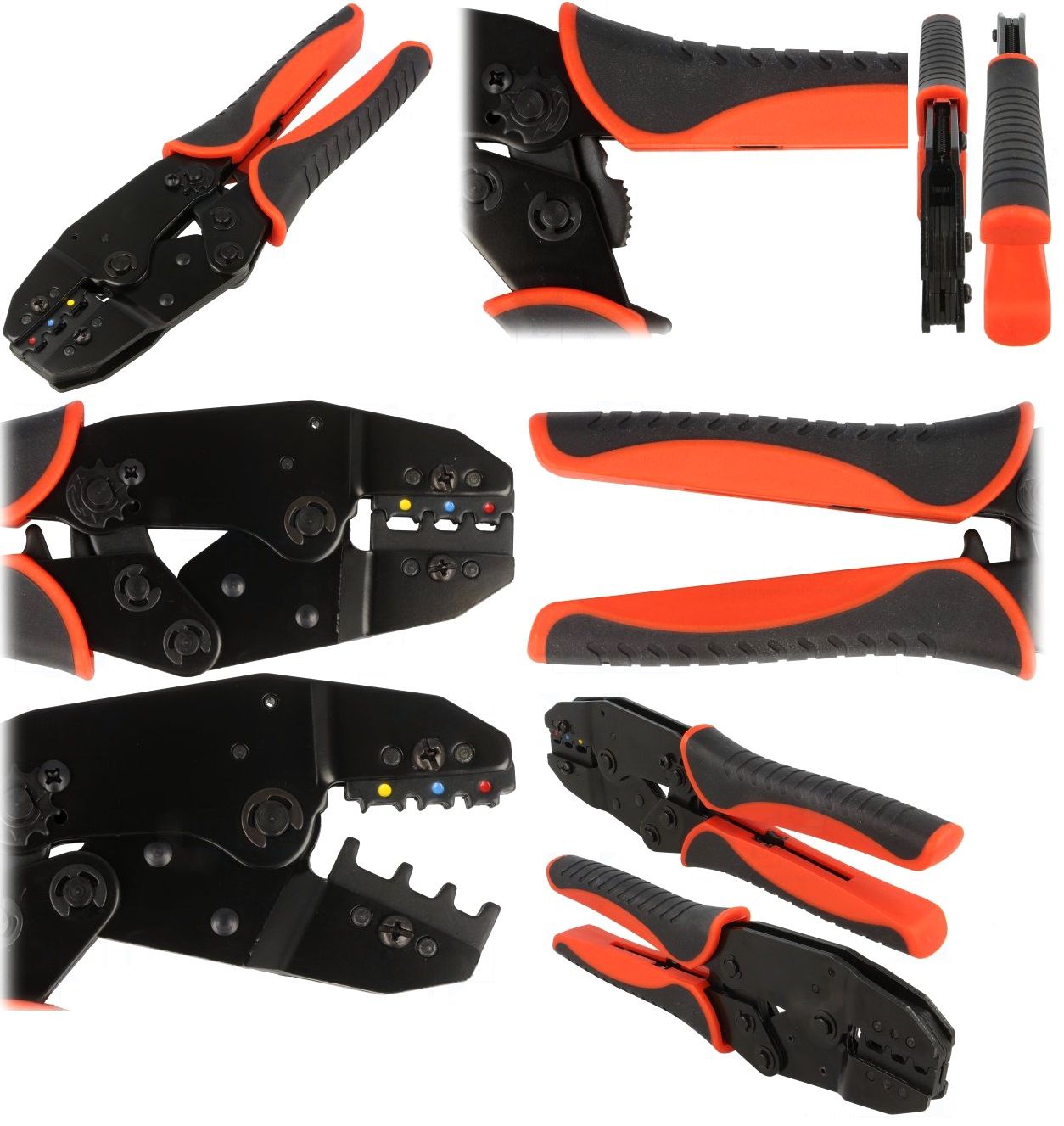

336NB

Length: 220 mm
Application: insulated connectors; insulated terminals
Wire cross-section: 0.5...6 mm2
Wire size: 20...10 AWG

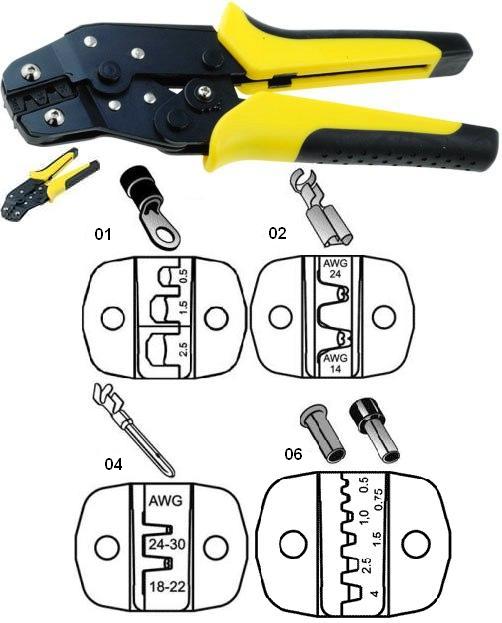

8160

Versiones de cuchillas: 01/02/04/06

Length: 190 mm

 Como se hace un buen Crimpado?, Ver Youtube
